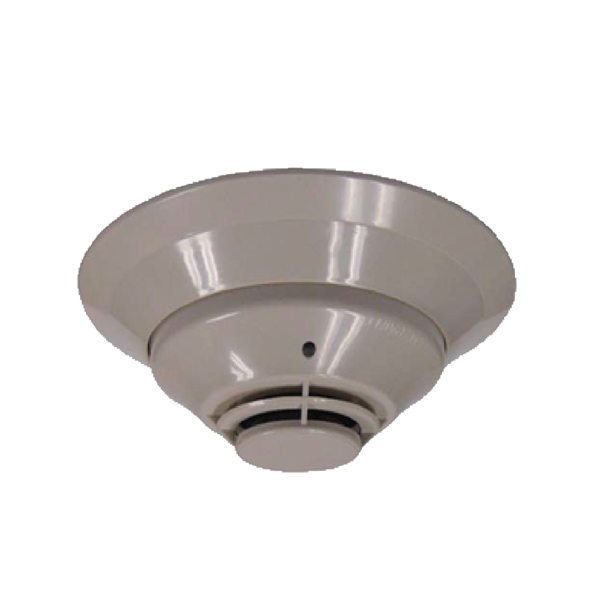

Honeywell Series Thermal Detector

The HM-FHSE-UL, HM-RHSE-UL and HM-HTSE-UL Series thermal detectors are addressable sensors that use a state of-the-art thermistor sensing circuit for fast response. These sensors provide protection for open areas and can be used use with addressable Fire Alarm Control Panels (FACPs).

The HM-FHSE-UL and HM-RHSE-UL sensors provide fixed temperature detection at 135°F (57°C). The HM-RHSE-UL sensor also responds to rate of rise conditions of greater than 15°F (8.3°C) per minute. The HM-HTSE-UL is a fixed, high-temperature detector that activates at 190°F (88°C). These thermal detectors provide addressable property protection for a variety of applications.

Comes with two LEDs on each sensor that provide a local, visible sensor indication. The remote LED annunciator capability is available using an optional accessory, the RA100Z.

SLC Loops

Two-wire SLC loop connection.
Unit uses base for wiring.

Addressing

Addressable by device.
Rotary, decimal addressing:
01–159 with MS-9600 series,
01–99 with MS-9200 series.

Architecture

Sleek, low-profile, stylish design.
State-of-the-art thermistor technology for fast response.
Integral communications and builtin device-type identification.
Built-in tamper resistant feature.
Built-in functional test switch activated by external magnet.

Operation

Factory preset at 135°F (57°C) for the HM-FHSE-UL and HM-RHSE-UL; 190°F (88°C) for the HM-HTSE-UL.
Rate-of-rise triggers at 15°F (8.3°C) per minute for the H355R(A).
360-degree viewing angle of the visual alarm indicators (two bicolor LEDs). LEDs blink red in Normal condition and steadily illuminate red in Alarm.
Visible LEDs blink every time the unit is addressed.

Mechanicals

Sealed against back pressure.
SEMS screws for wiring of the separate base.
Designed for direct-surface or electrical-box mounting.
Plugs into separate base for ease of installation and maintenance.
Separate base allows interchange of photoelectric, ionization and thermal sensors.
